Base metal type k thermocouple with metal sheath

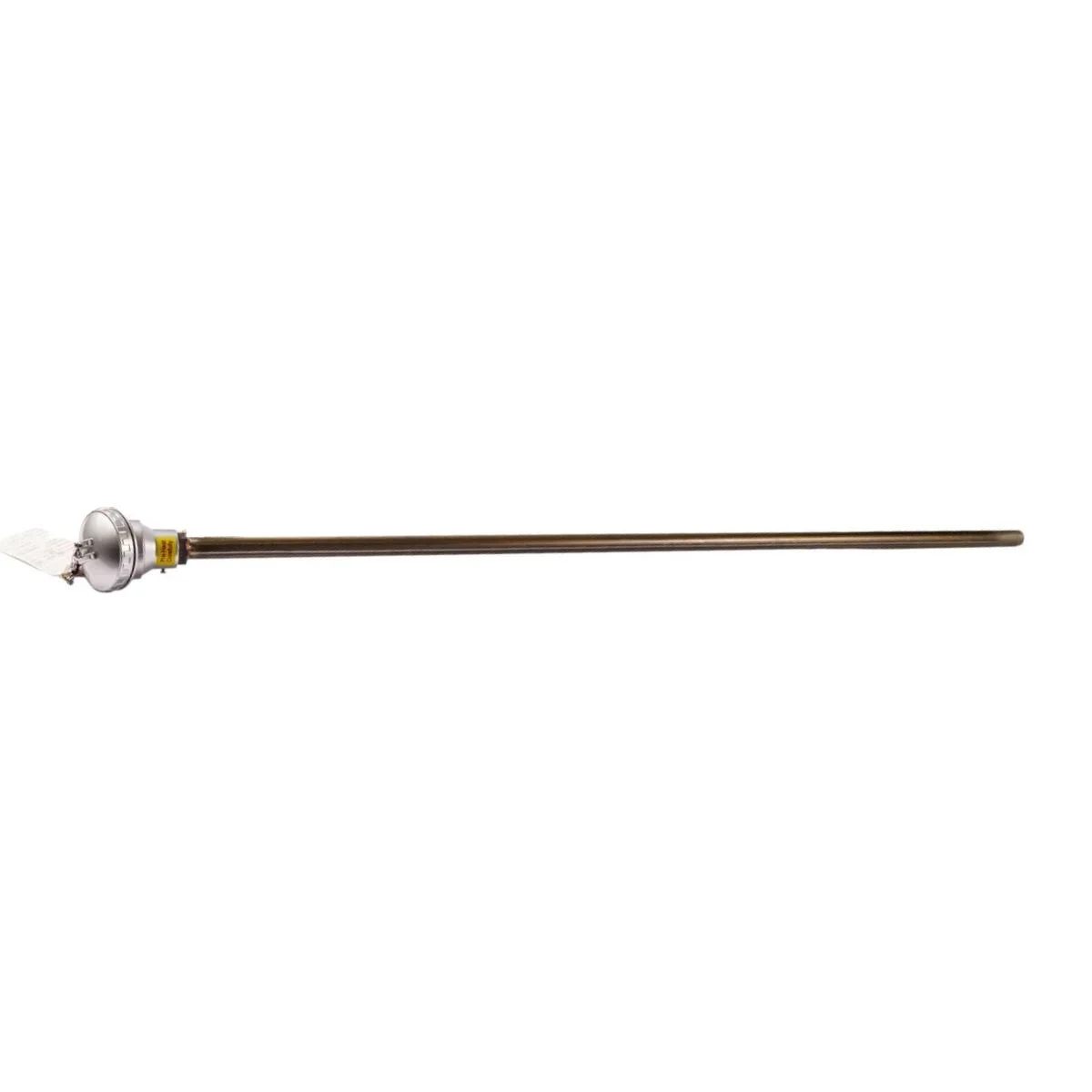

High Temperature Thermocouple Assembly With Metal Sheath

Price on Quotation

A tough design rare metal sensor for use in high-temperature aggressive environments i.e. cement processes and incinerators.

Application Notes:

  • Often has an adjustable flange or compression fitting
  • High temperature
  • Fast response
  • Will withstand tough industrial use

Delivery time: Product made to order, delivery date to be confirmed.

Compliance:
✔ REACH (1907/2006) 2025)
✔ RoHS 3 (2015/863)
✔ Mineral Conflict
✔ ISO 9001 Certified

PQAL black on white ukas 9001 logo

SKU: RMM Category Tag
Need some help?
Call us: +44 (0) 1246 261 999 websales@peaksensors.com
Contact Us

"*" indicates required fields

Full Name*
Please enter a number from 1 to 999.
Privacy Policy
This field is for validation purposes and should be left unchanged.

Similar Products

Related products

0
    0
    Your Basket
    Your basket is emptyReturn to Shop
    Continue Shopping
        Scroll to Top

        Technical Information

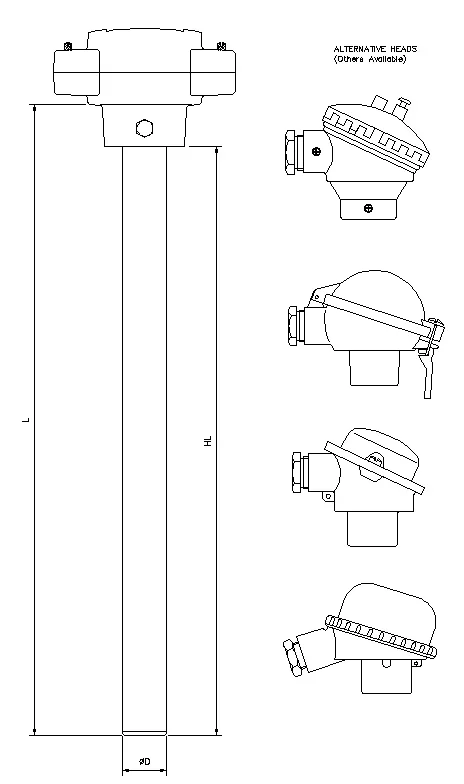

        Technical Diagram

        Shipping Information

        Quote Request

        Special Options:

        • Special materials available on request
        • Wear and Chemical resistant coatings
        • Ceramic lining sheath
        • Sleeve can be formed into right angle
        • Hygienic designs
        • Process fittings
        • Reduced tip options
        • Pressure testing
        • Material Certificates

        Appropriate Sheath Material:

        MaterialMax Temperature
        Kanthal AF, Kanthal APM1300°C
        253 MA1150°C
        446 Stainless Steel1100°C
        310 Stainless Steel1100°C
        Alloy 600 (Inconel)1100°C
        Type Designation:

        RMM

        Temperature Range:

        0 to 1300°C

        Common Sensor Types:

        R, S, B

        Common Sheath Size : (ØD)

        Ø 6.0 to 26.7mm (3/4″ nominal bore)

        Common Element Diameters:

        Ø 0.15mm to 0.5mm

        Head options:

        ALA, KNE (IP68), HR AL BL (flip top), many others

        High Temperature Thermocouple Assembly With Metal Sheath
