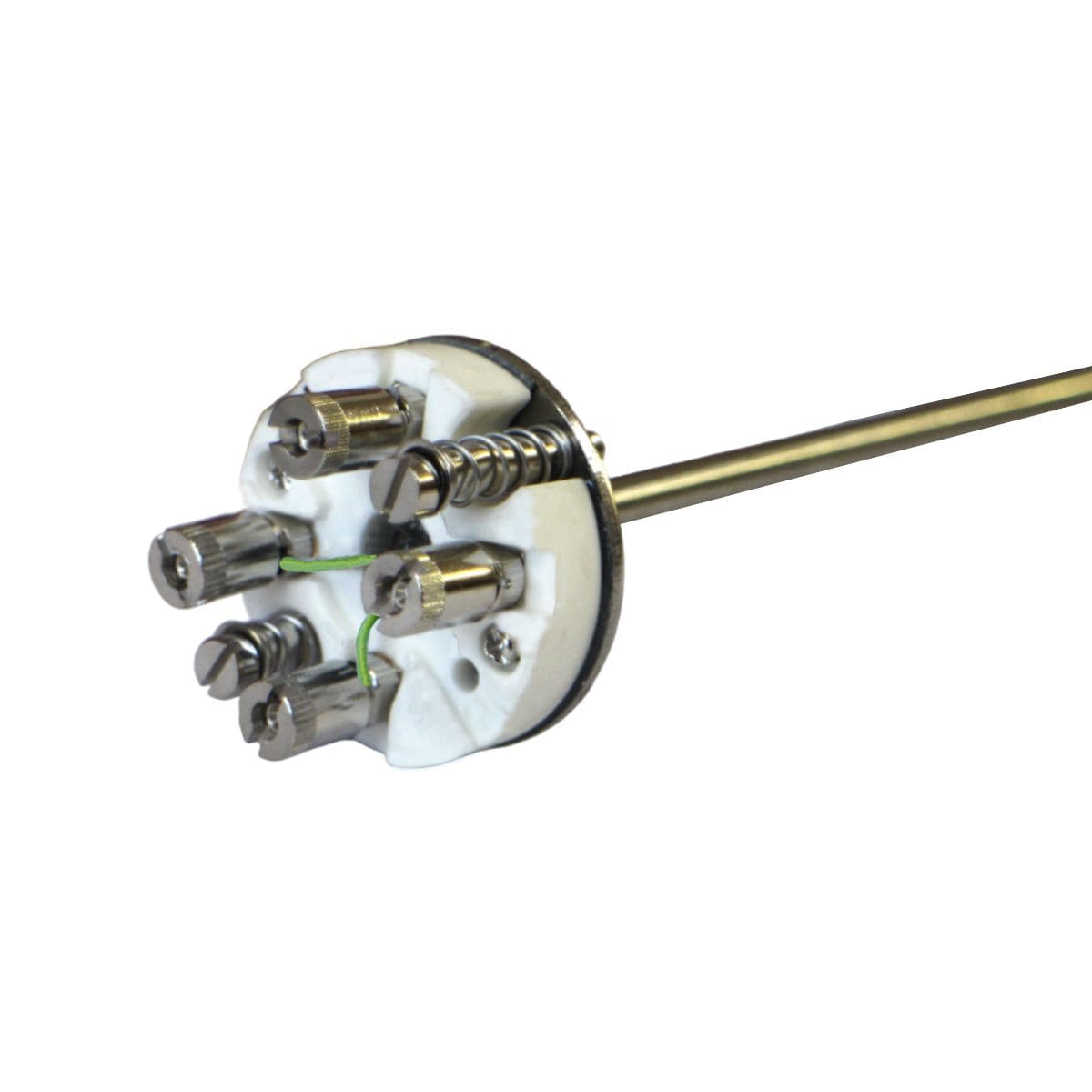

Thermocouple with block

Mineral Insulated Thermocouple Insert with Block

From: £17.09 - £43.72 Exc VAT

This mineral-insulated thermocouple with a block is often used for insertion into existing Thermowell assemblies or as part of a head assembly.

Application Notes:

  • Used in Pocket/head assemblies
  • Suitable for quick replacement on plants
  • Industry standard block size
  • Spring loaded for good thermal contact
  • Maximum temperature – 1250°C

Delivery time: Product made to order, delivery date to be confirmed.

Compliance:
✔ REACH (1907/2006) 2025)
✔ RoHS 3 (2015/863)
✔ Mineral Conflict
✔ ISO 9001 Certified

PQAL black on white ukas 9001 logo

SKU: MTI Category
Need some help?
Call us: +44 (0) 1246 261 999 websales@peaksensors.com
Contact Us

"*" indicates required fields

Full Name*
Please enter a number from 1 to 999.
Privacy Policy
This field is for validation purposes and should be left unchanged.

Similar Products

Related products

0
    0
    Your Basket
    Your basket is emptyReturn to Shop
    Continue Shopping
        Scroll to Top

        Technical Information

        Technical Diagram

        Shipping Information

        Quote Request

        Special Options:

        • Duplex
        • Insulated exposed or grounded junction
        • Non turning screw pins available
        • Compression fitting
        • Encapsulated wires, limited travel option
        • Tagging
        • Material Certificates



        Type Designation:

        MTI

        Temperature Range:

        -200 to 1250°C depending on thermocouple sensor type

        Common Sensor Types:

        K, J, N, T, E

        Common Diameters:

        Ø 3.0mm, 6.0mm, 8.0mm

        Common Sheaths:

        Inconel, 316 SS, 321 SS, 310 SS, Nicrobell.

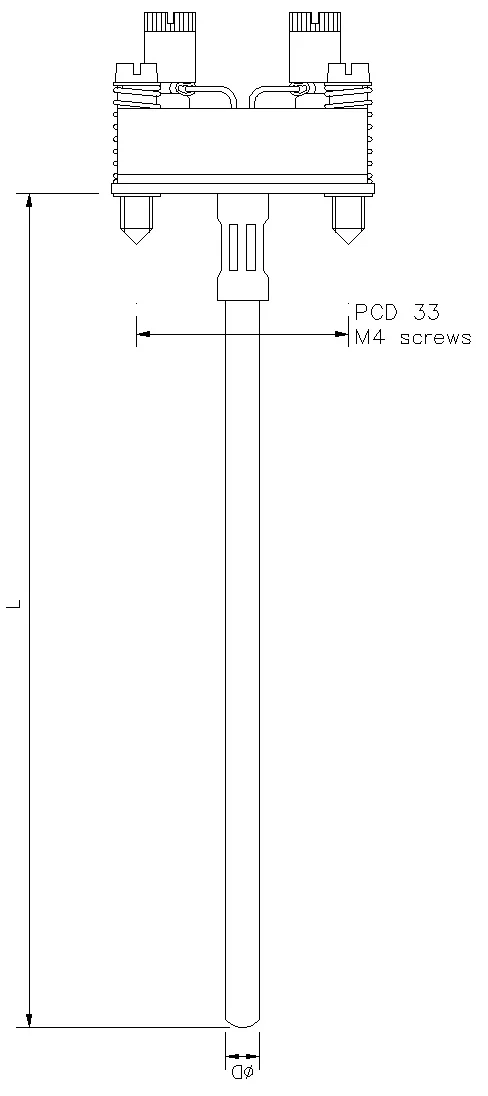

        Block size:

        Ø 41mm, M4 screws 33mm PCD

        Cold End Max Temperature:

        150 °C
